Hiwonder IoT Smart Home Kit
New
- Comprehensiveness: The IoT system encompasses light sensors, raindrop sensors, ultrasonic sensors, and WiFi modules, providing you with the opportunity to understand the fundamental principles of sensors and wireless communication.
- Interactivity: The IoT system simulates scenarios and integrates with practical use cases to vividly demonstrate its effectiveness.
- Practicality: This kit provides a hands-on opportunity to comprehend the operational logic of sensors and data processing. Extensive tutorials are available to help you become proficient in IoT and sensor technology.
- Flexibility: Utilizing micro:bit, the IoT system can be expanded with diverse functions, enhancing your capacity for technological innovation and problem-solving.
Product Introduction

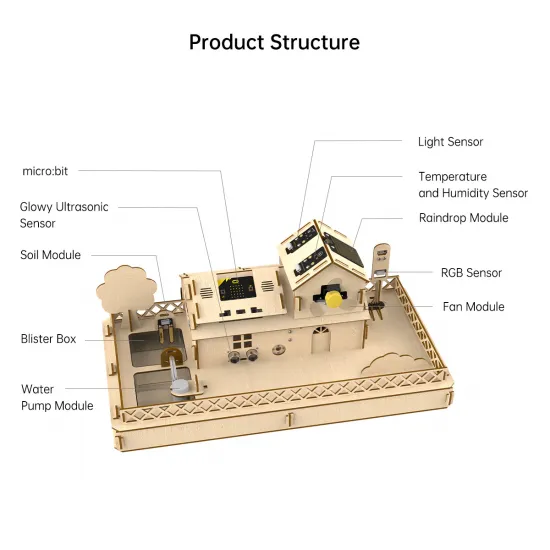

The IoT Smart House is powered by micro:bit and integrates with diverse sensors to achieve automation, wireless control, and intelligent management. The IoT Smart House encompasses an array of sensors and electronic modules, including light sensor, soil sensor, temperature and humidity sensor, ultrasonic sensor, and more. By engaging with this kit, you'll develop hands-on skills in utilizing sensors and electronic modules to create IoT systems, and you'll also learn how to implement intelligent house management through coding.
Application Cases
Temperature Control System
When the IoT system detects that the temperature exceeds 30°C and the humidity surpasses 80%, the fan turns on to cool down and reduce the humidity.
Automatic Door Control System
You can control the door to open and close by pressing buttons A and B on the micro:bit controller.
Night Alarm System
When the light sensor detects dim lighting and the ultrasonic sensor identifies an obstacle ahead, the IoT system will emit a beeping alarm.
Sound Alarm System
When the light sensor detects dim lighting and the sound exceeds 100, the IoT system will emit a beeping alarm.
IoT can be employed to develop a clothing drying system utilizing a raindrop sensor, light sensor, and servo. When rain is detected and the sky darkens, the clothes drying rack automatically retracts clothes indoors. Conversely, on non-rainy days with bright skies, the drying rack extends outside the house.
| Size | 486*255*210mm |
| Weight | 1.11kg |
| Working voltage | 7.4~8.5V |
| Battery voltage | 7.4V |
| Maximum output current | ≤5A |
| Maximum power consumption | 42.5W |
| Communication method | WiFi |
| WiFi frequency | 2.4G |
| WiFi protocol | TCP communication |
| Power supply | Two 3.7V 18650 batteries (1800mAh) |
| Main control system | micro:bit control board |
| Software | iOS/Android mobile App |
| Servo model | LFD-01 anti-blocking servo |
| Control method | Mobile App control |
Product Parameters

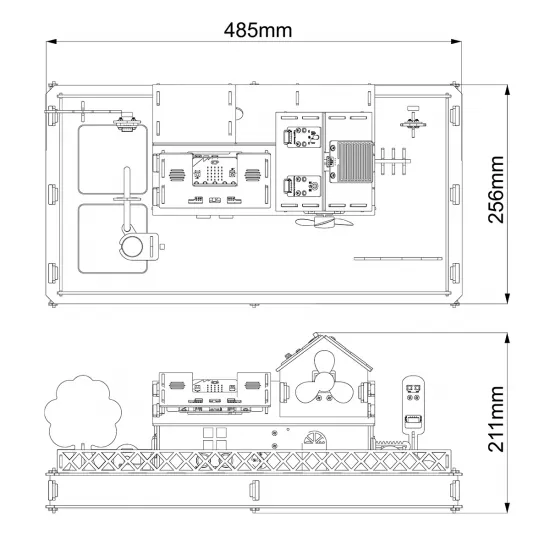

Dimensional Diagram

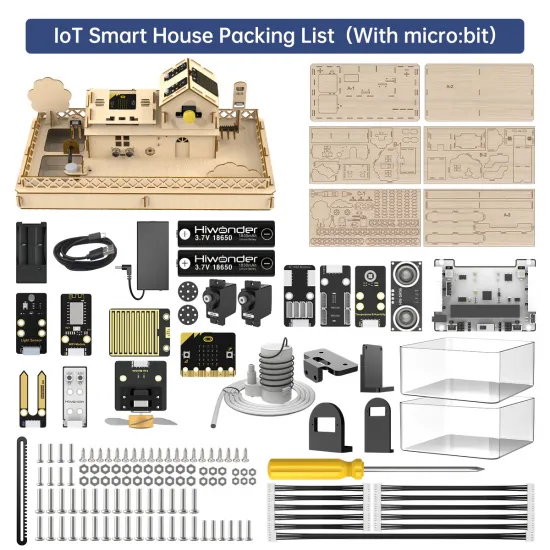

IoT Smart House Packing List
