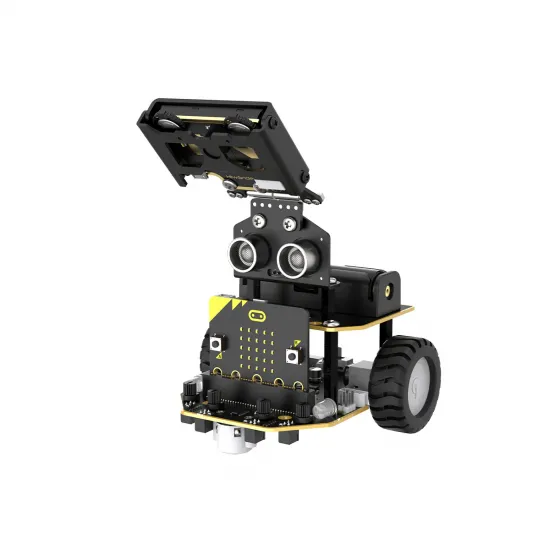

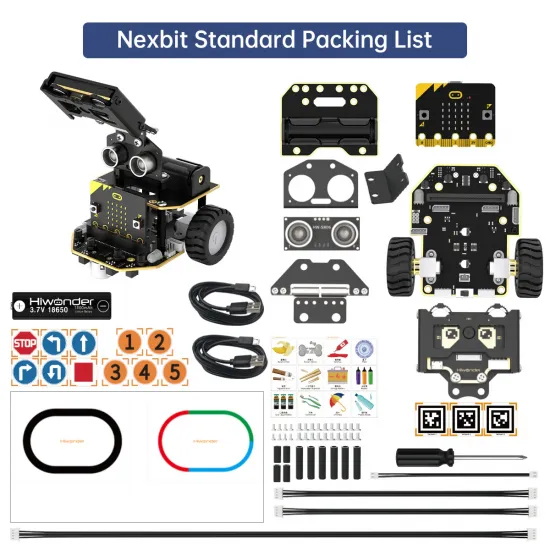

Hiwonder Nexbit standard kit

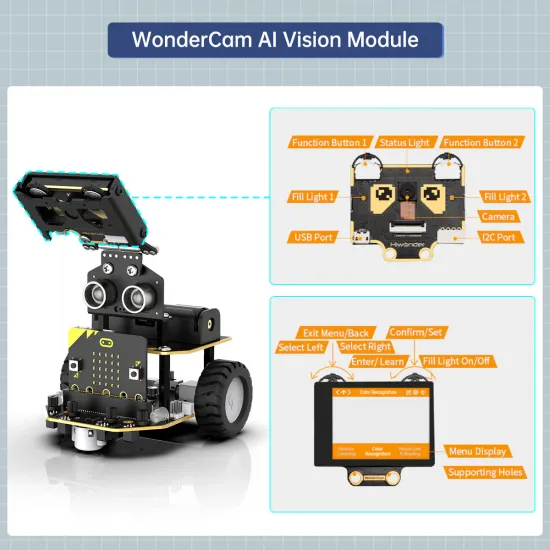

- micro:bit Programming, AI Vision Robot: Nexbit is AI smart robot car powered by micro:bit. Nexbit features a high-performance WonderCam AI vision module with an integrated HD camera. This module enables various AI applications, including color recognition, vision line following, target tracking, and more.

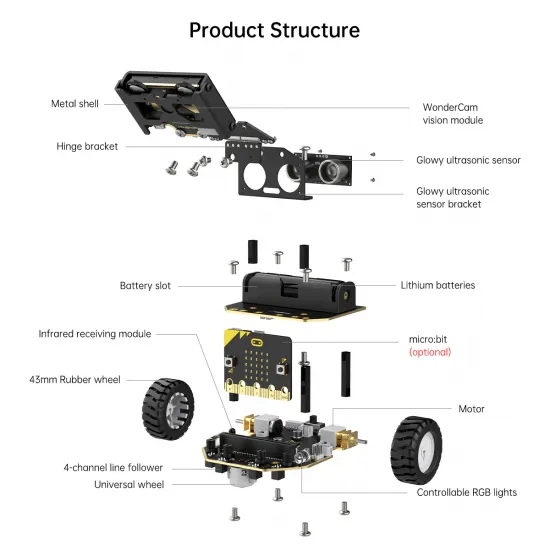

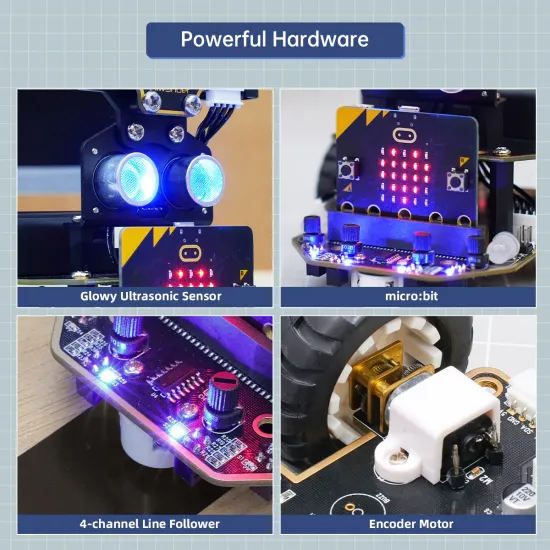

- Powerful hardware: Nexbit boasts an impressive array of features within its compact body, including a high-precision 4-channel knob line follower, an AI vision module, a glowy ultrasonic sensor, an infrared receiver, RGB lights, and other electronic components.
- One-click Training and Learning: Nexbit's AI vision module is integrated with some learning algorithms, allowing it to complete diverse AI vision projects such as waste sorting and tag tracking.

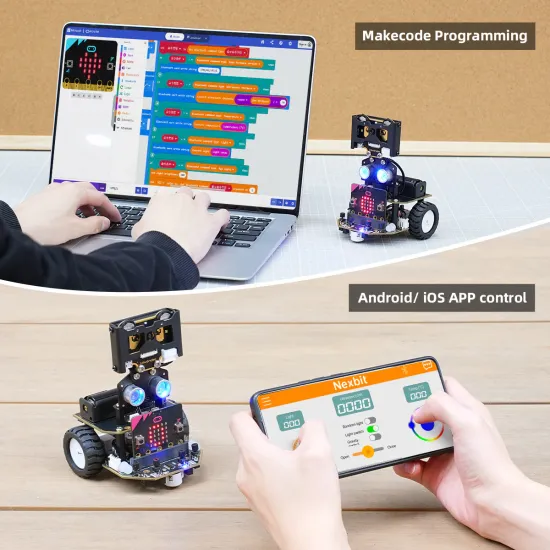

- Various Control Methods&Makecode Programming: Nexbit supports Android/ iOS APP control, Handlebit Remote Control.Nexbit also supports Makecode programming.Drag and drop building block-style modules for programming,which is easy to learn.

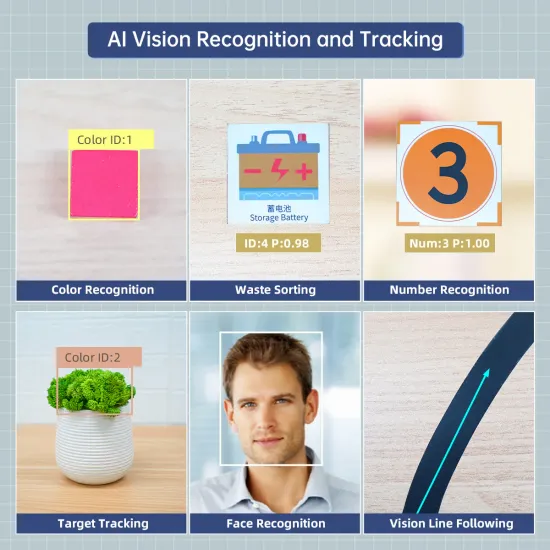

Color Recognition
Nexbit can identify the color of items through WonderCam, and once recognized, the item will be framed on the screen.
Number Recognition
Empowered by the WonderCam AI vision module, Nexbit can accurately recognize numbers and frame them on the screen.
Face Recognition
Nexbit's WonderCam detects face and identifies if it matches according to conditions and image on its display.
Waste Sorting
Using WonderCam AI vision module, Nexbit can recognize distinct waste cards and display the corresponding patterns on the LED matrix of the micro:bit.
Glowy Ultrasonic Sensor
Equipped with a glowy ultrasonic sensor, Nexbit can be programm-ed to measure distances and emit various colors of light for real-time feedback.
Onboard Lithium Battery
The robot car is powered by a 1800mAh LiPo battery, offering an extended service life. Additionally, it includes a USB port for convenient charging, allowing users to charge it safely.
Mini High-Torque Geared Motor
Nexbit features a high-torque geared motor, ensuring an elegant appearance, exceptional durability, and a robust drive for the robot.
Ample Expansion Ports
Nexbit’s base board is equipped with multiple IIC ports, GPIO ports and 4PIN ports facilitating seamless expansion and easy wiring.
Road Sign Recognition
Number Recognition
Autonomous Transportation
Intersection Judgment

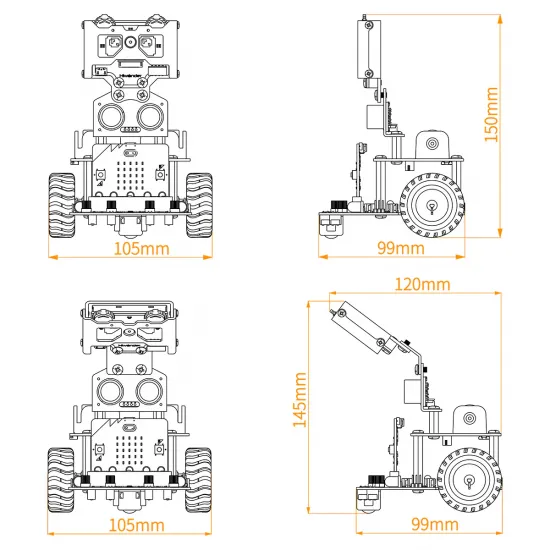

| Product size | 99*105*150mm |
| Product weight | about 245g |
| Material | metal bracket |
| Controller | micro:bit V2 |
| Display | 2.0-inch LCD screen with resolution of 320*240 |
| Programming software | micro:bit+ iOS/ Android APP |
| Output | RGB light, buzzer, servo port, llC port, GPIO port and 5*5 LDE matrix |
| Input | 4-channel line follower, glowy ultrasonic sensor, infrared receiver and WonderCam vision module |
| Power supply | 1* 1800mAh 18650 LiPo battery |
| Control method | mobile APP control, handle control |
| Protection method | overcurrent protection, low voltage protection |
| Processor | Kendryte K210 |
| Camera | 2 megapixel |
| Supply voltage | 5.0V |
| Working current | 300mA (Typical working condition: facial recognition,100% backlight, fill light off) |
| Connectors | I2C |
| Display | 2.0IPS, resolution 320x240 |
| Built-in function | Facial recognition, image classification, feature learning, color recognition, vision line following, tag recognition, number recognition and landmark recognition. |
| Dimension | 52mmx50mm |
| Display dimension | 41mmx31mm |
